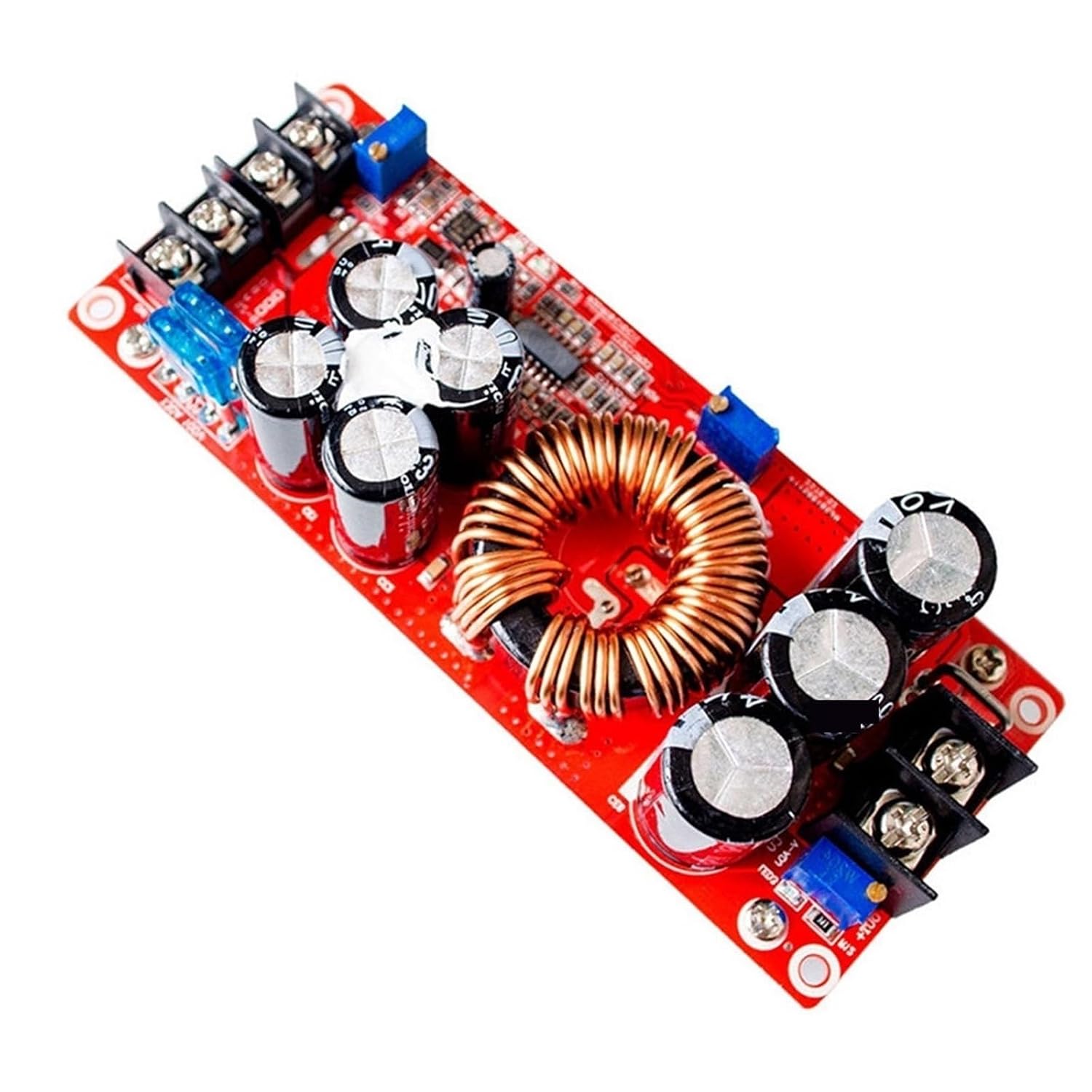

1200/1500/1800W DC-DC Boost Constant Voltage Adjustable Car Charger Power Module 10-60V to 12-90V(1500W)

ATC Power ModuleModule Model: SZ-BT07CCCV-AModule Name: 1200W boost constant current moduleModule nature: non-isolated boost module (BOOST)Input voltage:DC10-60V (direct input 10-60V without cap to select the voltage) (updated 2016/5/15)Input current:20A (MAX) more than 15A please add fan cooling (add fan cooling input voltage in 12-24V input current can reach 25A)Static working current: 15mA (12V to 20V, the higher the output voltage, the higher the static current will increase)Output voltage: 12-80V continuously adjustableOutput current: 18A MAX More than 10A, please strengthen the heat dissipation (related to the input and output pressure difference, the larger the pressure difference, the smaller the output current)Constant current range: 0.5-18A (+/-0.3A)Input anti-reverse: Yes (150A power MOS anti-reverse)Low battery protection: Yes (9-50V adjustable)Operating temperature: -40 ~ +85 degrees (ambient temperature is too high, please strengthen the cooling)Operating frequency: 150KHzConversion efficiency: 92%-97% (efficiency and input and output voltage, current, differential pressure related. (The efficiency is related to the input and output voltage, current and pressure difference.)Input overcurrent protection: Yes (input more than 25A,protection, power supply does not boost)Short-circuit protection: Yes (input 30A fuse) Double short-circuit protection, safer to use.Input reverse protection: Yes (150A power MOS tube anti-reverse. Can be reversed for a long time)Installation: four 3mm copper columnsWiring: terminal (please use high-current pure copper wire)Output power: = input voltage * 20A, such as: input 12V * 20A = 240W Input 12V power is 240WInput voltage * 20A, such as: input 24V * 20A = 480W, that is: input 24V at the power of 480WNote: the power at input 12V is 240W, the power at input 24V is 480W, and the power at input 36V is 720W.Module Name: 1500W boost constant current moduleModule nature: non-isolated boost module (BOOST). The output voltage should be higher than the input voltage.Input voltage DC10-60VInput current: 10-30V input voltage, maximum current 30A31-60V input voltage, maximum current 25AStatic operating current: 15mA (12V to 20V when the output voltage higher static current will increase)Output voltage: 12-90V continuously adjustable (default output to 19V shipping, such as multimeter buyers can adjust)12-90V fixed output (for batch customers)].Output current:20AMAX more than 15A please strengthen the heat dissipation (with the input.),Output pressure difference, the larger the pressure difference outputThe larger the pressure difference, the smaller the output current)Constant current range: 0.8-20A (+/-0.3A)Input anti-reverse: Yes (150A power MOS anti-reverse)Low battery protection: Yes (8-50V adjustable) self-recovery typeOperating temperature: -40 ~ +85 degrees (ambient temperature is too high, please strengthen the heat dissipation)Operating frequency: 150KHzConversion efficiency: 92%-97% (efficiency and input.)Output voltage,Current pressure difference, the pressure difference is small and the efficiency is high)Input overcurrent protection: Yes (input more than 35A, protection, power supply does not boost)Short-circuit protection: Yes (input 30A fuse) double short-circuit protection, safer to use)Input reverse connection protection: Yes (150A power MOS tube anti-reverse. Can be reversed for a long time)Installation: 4pcs 3mm copper postsWiring: terminal (please use high-current pure copper wire)Output power: = input voltage * 30A, such as input 12V * 30A = 360W input 12V when the maximum power is 360WInput voltage * 30A such as: input 24V * 30A = 720W, that is: input 24V when the maximum power is 720WPower Description:As the power supply 10-30V when the input current is maximum 30A, 31-60V when the input current is maximum 25A, outputThe power is related to the input voltage. The higher the input voltage, the higher the power(input voltage and input current is equal to the power of the machine) such as input 12V30A power is 360W input 24V*30A is 720W.Input voltage is 36V, the input current is 25A, the maximum power supply power is 900W, and the output power is related to the input voltage, the higher the input voltage, the higher the power.1800W1, the power supply adopts double iron silicon aluminum 4 1.2MM pure copper wire and spare.100V/210A low resistance power MOS, high power and high current input.Suitable for high-power LED, motor use2, there is an input MOS anti-reverse connection protection, do not worry about the input connection rather burnedBad power supply.3, low battery protection in the battery input will not be over-discharged due to batteryDamage to the power module and battery5, thicker heat sink and intelligent temperature control fan coolingModule Model: SZ-BTO7CCCV-D1Module Name: 1500W boost constant current moduleModule nature: non-isolated boost module (BOOST)Input voltage: DC10-60VInput current: 10-30V input voltage, limit current 30A31-60V input voltage, limited to a large current 25AStatic operating current: 15mA (12V to 20, the higher the output voltage, the higher the static current will increase)current will increase)Output voltage: 12-90V continuously adjustable (default output is adjusted to 19V for shipments such asIf you need to adjust to other voltage values, please specify. If you have a multimeter, you canAdjustment)12-90V fixed output (for batch customers)Output current: 20AMAX more than 15A, please strengthen the heat dissipation (with the input and output pressure difference, the higher the pressure difference, the better the heat dissipation).Output current: 20AMAX over 15A, please strengthen the heat dissipation (related to the input and output pressure difference, the larger the pressure difference, the smaller the output current)Constant current range: 0.8-20A (+/-0.3A)Input anti-reverse: Yes (150A power MOS anti-reverse)Low battery protection: Yes (8-50V adjustable) self-recovery typeOperating temperature: -40 ~ +85 degrees (ambient temperature is too high, please strengthen the heat dissipation)Operating frequency: 150KHzConversion efficiency: 92%-97% (efficiency and input.)Output voltage, current(Efficiency is related to the input and output voltage and current, and the pressure difference, the efficiency is high when the pressure difference is small)Input overcurrent protection: Yes (input more than 35A, protection, power supply does notBoostShort-circuit protection: Yes (input 30A fuse) double short-circuit protection, with a more securesafetyInput reverse protection: Yes (150A power MOS tube anti-reverse. Can be longtime reverse connection)Installation: 4pcs 3mm copper postsWiring: terminal (please use high-current pure copper wire)Module size: 130mm long, 52mm wide, 84mm high (high with the copper post and theFanModule weight: 490gOutput power: input voltage * 30A, such as: Input12V*30A=360W The power limit of 12V input is 360W.Input voltage * 30A, such as: input 24V * 30A = 720WThat is: input 24V time limit power is 720WCurrent Type : DC1500W 1200W High Power DC-DC Booster : 2-JK-735

• ATC Power Module
• 1200/1500/1800W DC-DC Boost Constant Voltage Adjustable Car Charger Power Module 10-60V to 12-90V
• Current Type : DC
• 1500W 1200W High Power DC-DC Booster : 2-JK-735
